SYNAPTICADcolon TIMING DIAGRAM EDITORS

SynaptiCAD offers three different timing diagram editors

SynaptiCAD's timing diagram editors have the most extensive and accurate timing analysis features available in any timing diagram editor on the market. Three levels of editors lets you pick the best price/feature set for your application:

  • Timing Diagrammer Pro is a timing diagram editor with full timing analysis features and supports both digital and analog waveforms.
  • WaveFormer Pro adds simulated signal support to make drawing timing diagrams faster and more accurate. It also can import and export to many formats including VHDL, Verilog, SPICE, logic analyzers, and pattern generators.
  • DataSheet Pro our top of the line editor adds support for managing large numbers of timing diagrams including multiple timing diagram windows, multiple print views, and style sheets for uniform appearance.

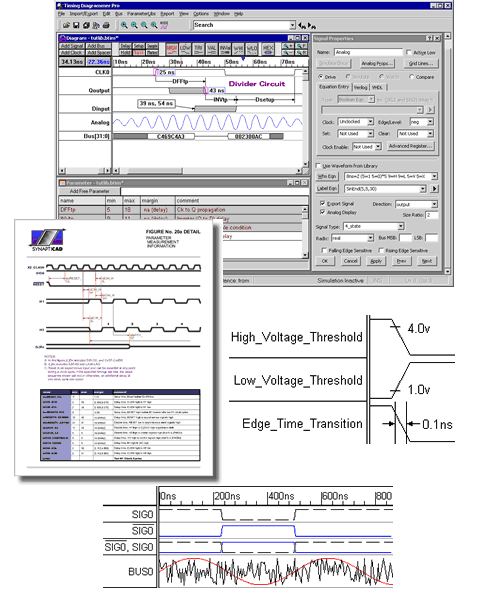

Timing diagram editor can make professional images for data books

Timing diagram editor uses Text objects for annotations

 Timing diagram editor has delays, setups, holds, and samples
Timing diagram editor can display signals in different ways

 Timing diagram editor displays Analog Signals
