The Reactive Test Bench Option is a sub-set of the TestBencher Pro product. It enables the creation of self-testing testbenches using a single timing diagram, rather than the multi-diagram bus-functional models created by TestBencher Pro. The Reactive test benches can respond to the model under test during simulation and also generate reports that describe the performance of the simulation. The Reactive Test Bench Generation Option can be added to WaveFormer Pro, WaveFormer Lite, DataSheet Pro, and BugHunter Pro.
Use the Stars to Find the Reactive Test Bench Features in the Manual:

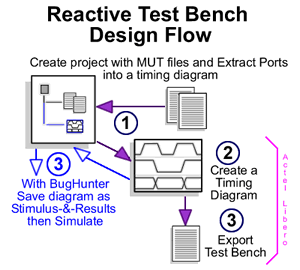

Because everything has to be accomplished in a single diagram, the design flow for using the Reactive Test Bench Option is slightly different from using TestBencher Pro. Use this chapter to find information on the Reactive Test Bench Project functions and Exporting the Test Bench.
•The Reactive Test Bench Generation Option shares most of the TestBencher Pro transaction level features for defining a timing diagram and this information is in the chapters marked with the star on the book. |
|
