Step 1: Configuring BugHunter for your Simulator(s)

BugHunter Pro needs to know where your VHDL/Verilog simulator or C++ compiler is located. If you are only using VeriLogger Extreme or VeriLogger Pro you can skip this section because the simulator was setup during installation unless you wish to run the 64-bit version of the simulator. BugHunter saves the paths for each external simulator or compiler in the simulatorconfiguration.ini file each time the program is closed.

Set the Path to the Simulator:

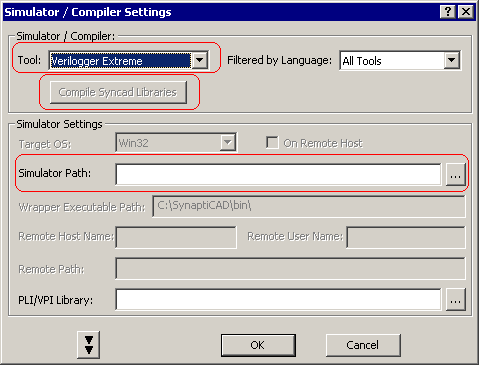

•Choose the Options > Simulator / Compiler Settings menu option to open a dialog of that name.

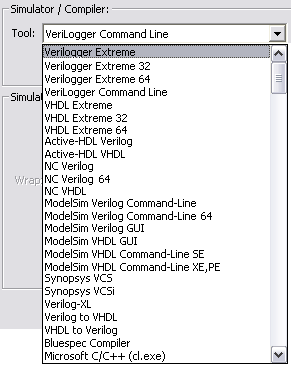

•In the Tools drop-down choose your simulator or compiler. VeriLogger Extreme will run either in 32bit mode or 64bit mode depending on your OS version (e.g. 32bit or 64bit OS). To force 32bit operation on a 64bit system, select VeriLogger Extreme 32.

Compiling the Syncad Libraries for Your Simulator(s)

•The Compile Syncad Libraries button will be enabled for simulators that require it. This button allows you to compile libraries needed by external simulators and compilers for SynaptiCAD projects. This needs to be done one time before using a new simulator.

•In the Simulator Path edit box, either type in the path name or use the browse button to locate the path.

•Continue to setup the paths for each tool that you are interested in using. When you are done click OK button to close the dialog.
